KnowPack
ARISO_LUXE_CF
  • Project Details
  • FE Testing
Objective: To find the structural behavior, deformations and stresses in various parts of CF and packaging under drop conditions
Description of image
Description of image Description of image
Description of image Description of image

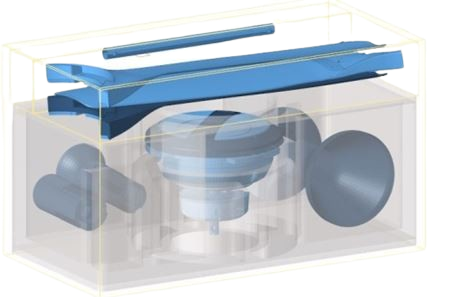

Product Details: Packaged CF
Packaging Objective:
  1. The integrity of packaged configuration should not collapse.
  2. Structural or function failure should not occur.
  3. There should no hard contact of the product.
  4. Foam should absorb the energy.
  5. Cardboard should not tear.
Deliverables:
  • Quality check sheet
  • Executive report containing results obtained from drop test
  • Interaction of the packaged assembly of air cooler (Air cooler assembly, EPS foam and Cardboard)
  • Contours of deformation (drop animation), stresses and plastic strains

Sequence of Drop Test

Test no. Drop Test Configuration
1 Corner Drop 1
2 Edge Drop 1-2
3 Edge Drop 1-5
4 Edge Drop 1-4
5 Left Side Face Drop 1-2-6-5
6 Right Side Face Drop 3-4-8-7
7 Bottom Face Drop 1-2-3-4
8 Top Face Drop 5-6-7-8
9 Front Face Drop 1-5-8-4
10 Rear Face Drop 2-3-7-6

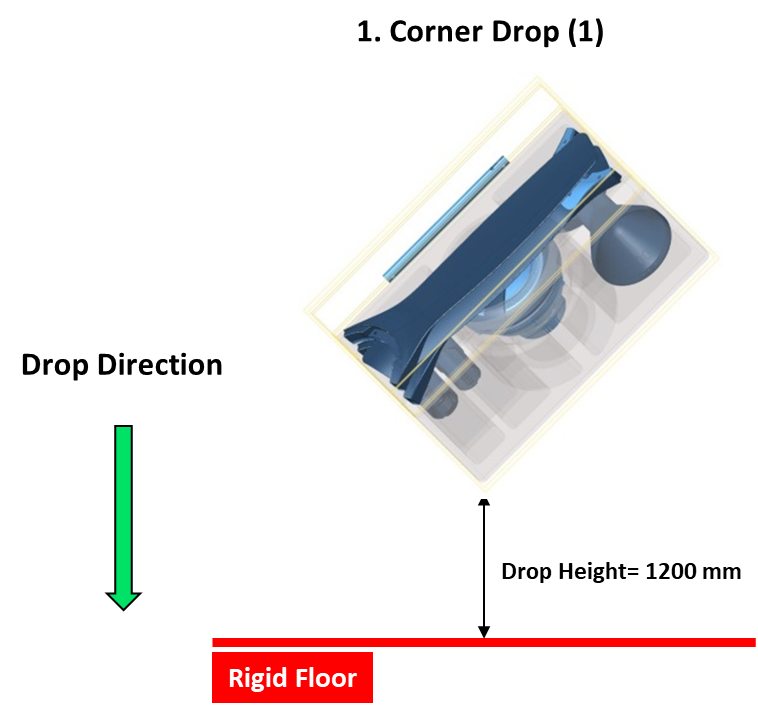

1.01 Corner Drop: Loading Condition

Corner Drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

1.02 Drop Test- Corner Drop

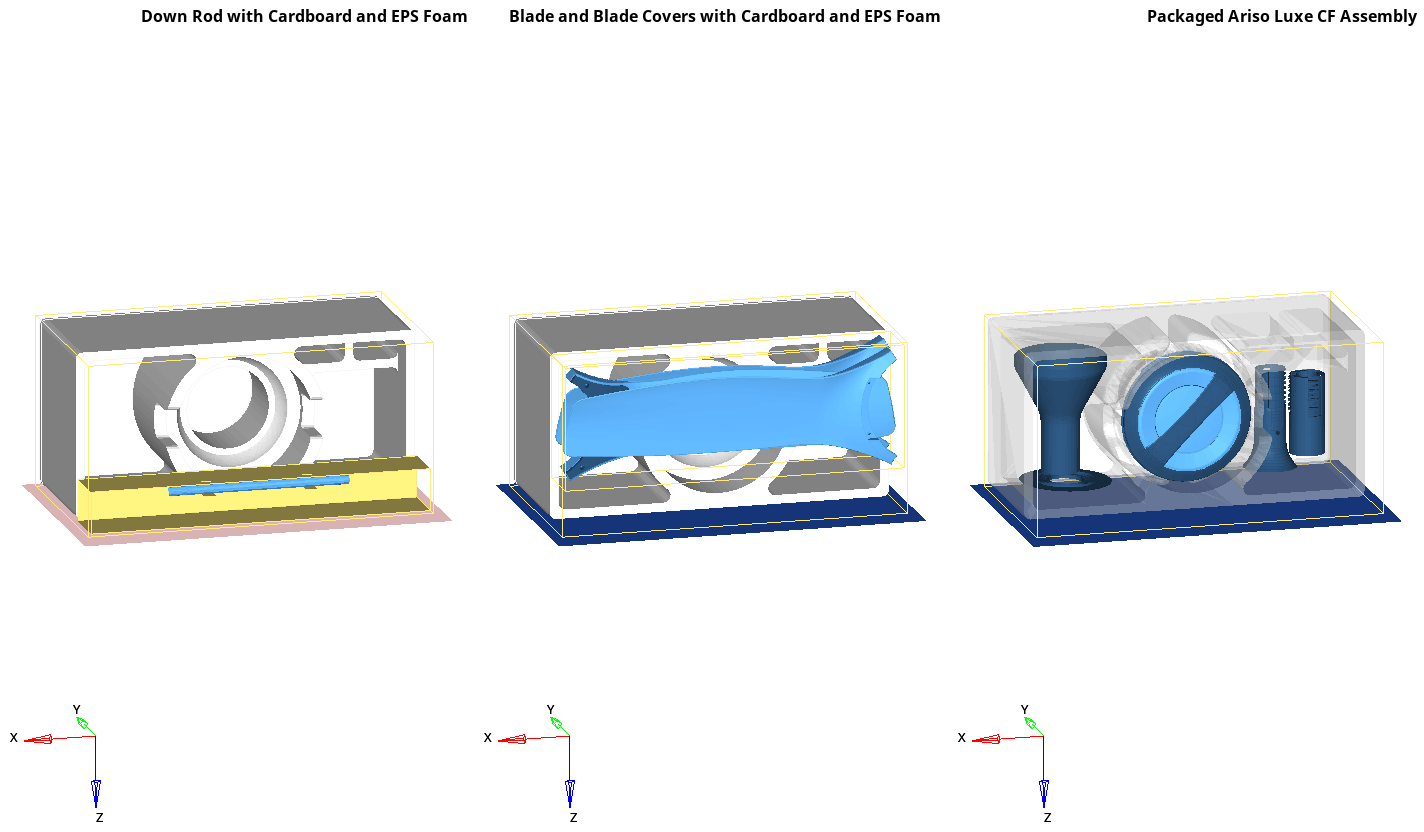

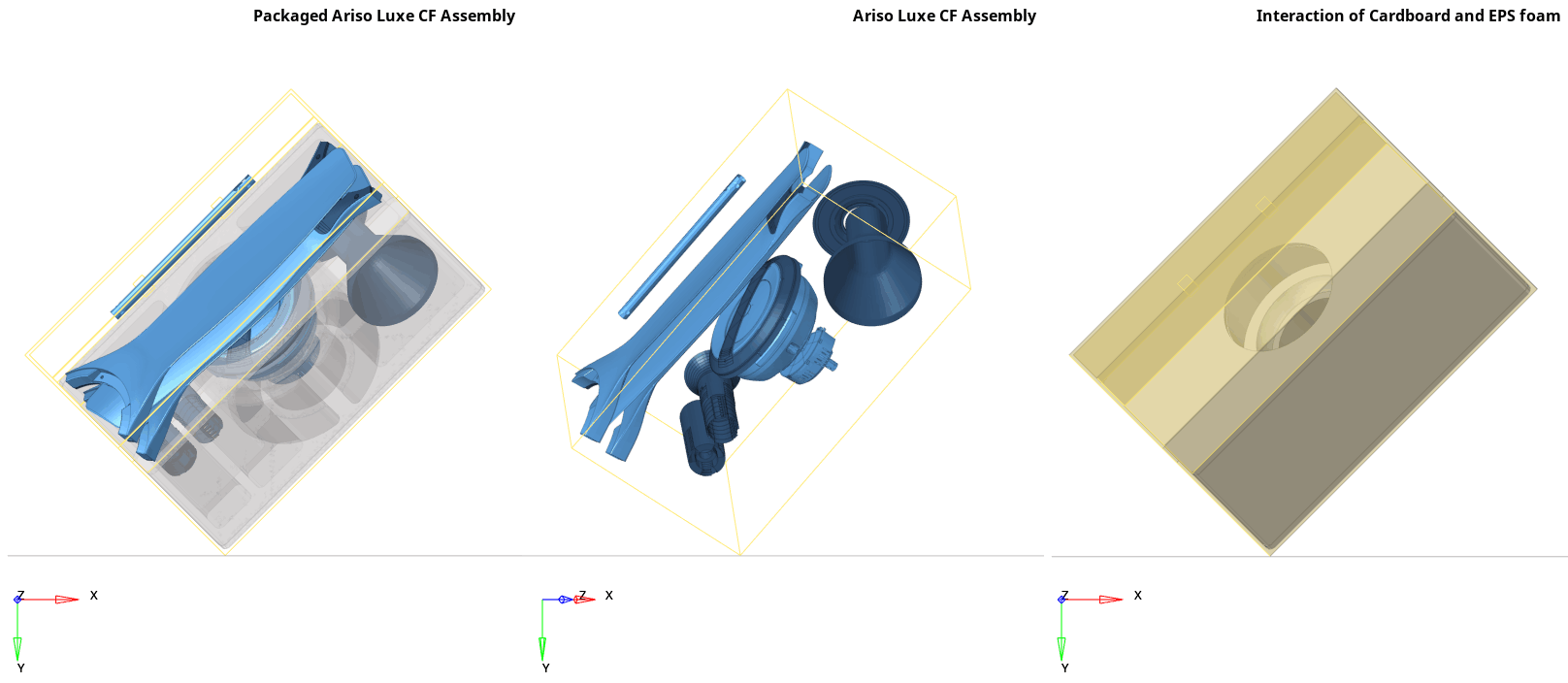

Corner Drop Animation
  • The above animation shows the straight face drop test when packaged ceiling fan assembly is dropped from a height of 1200 mm on a rigid floor.
  • The animation shows the interaction of ceiling fan with EPS foam and cardboard.

1.03 Blade

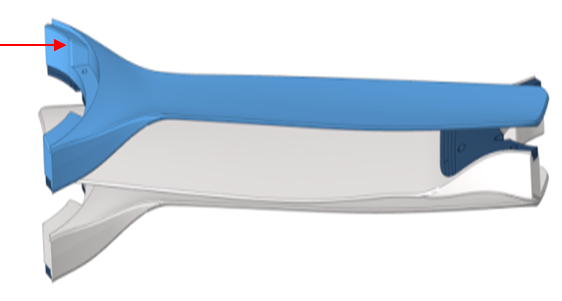

Top Blade
Top Blade Data
Top Blade

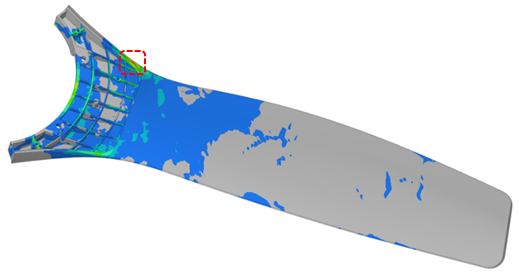

Top blade View

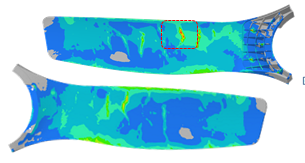

Middle Blade

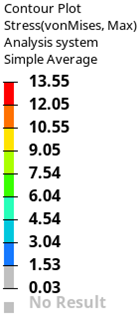

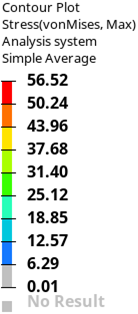

Middle blade data
Middle blade
Middle blade

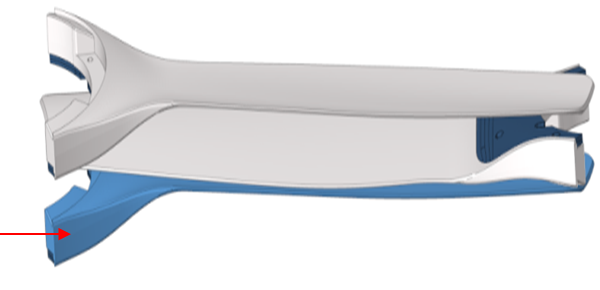

Bottom Blade
Bottom Blade
Bottom Blade

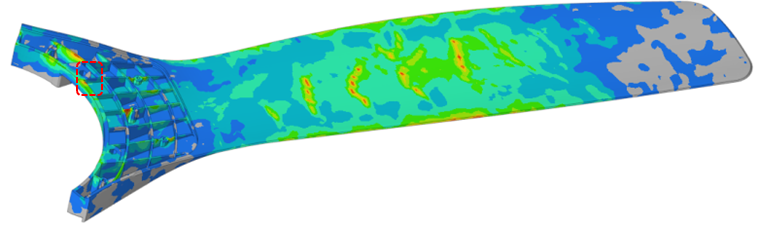

Bottom View

1.04 Canopy

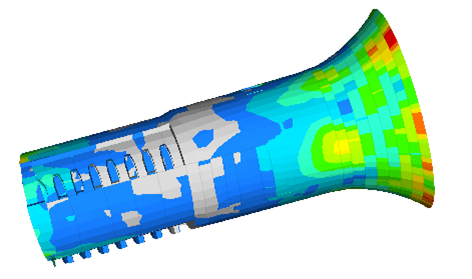

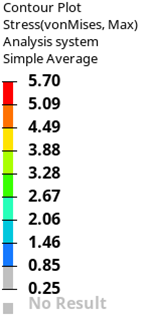

Top Canopy

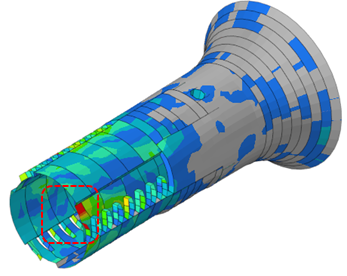

Top Canopy table

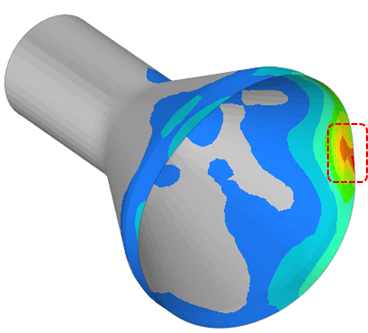

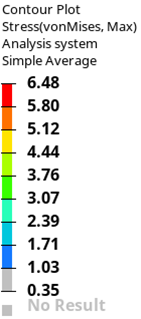

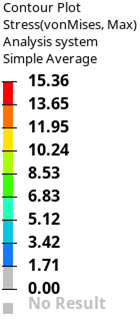

Bottom Canopy Table
Bottom Canopy

1.05 Cover

Top Canopy

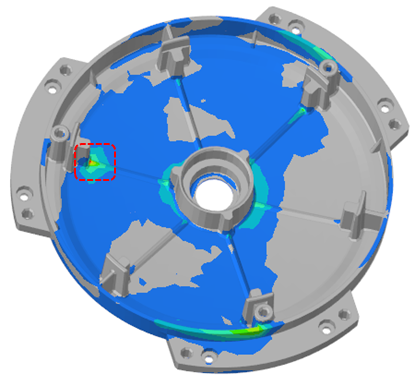

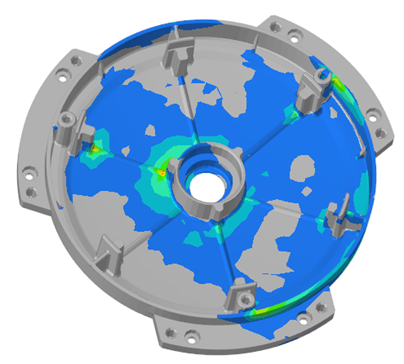

Top Canopy table
Bottom Canopy Table

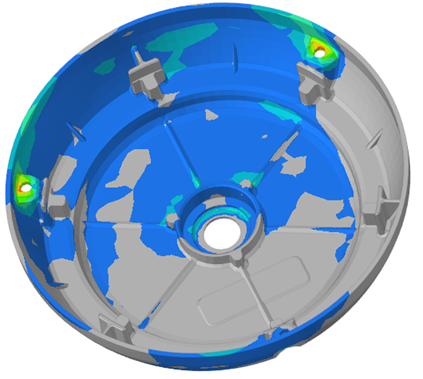

Bottom Canopy

1.06 False cover housing and deco

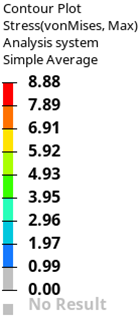

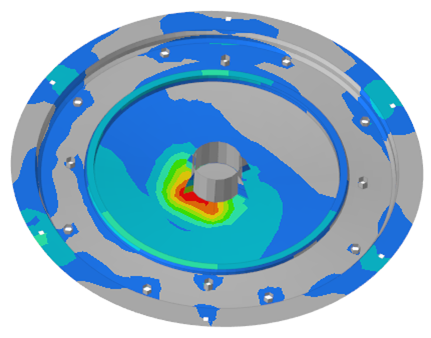

Top false cover table

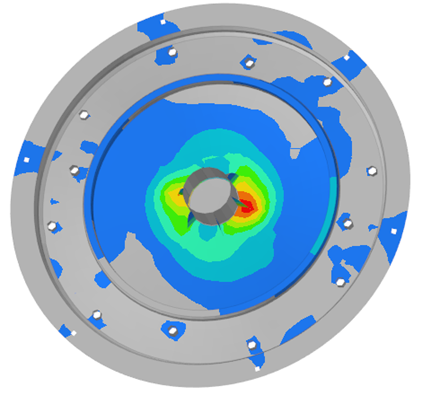

Top false cover

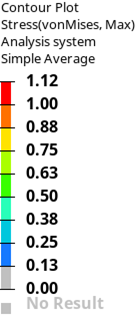

deco Table

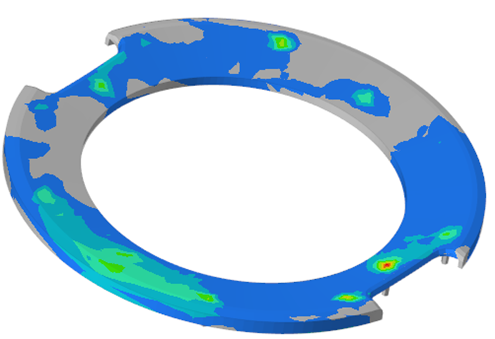

deco Canopy

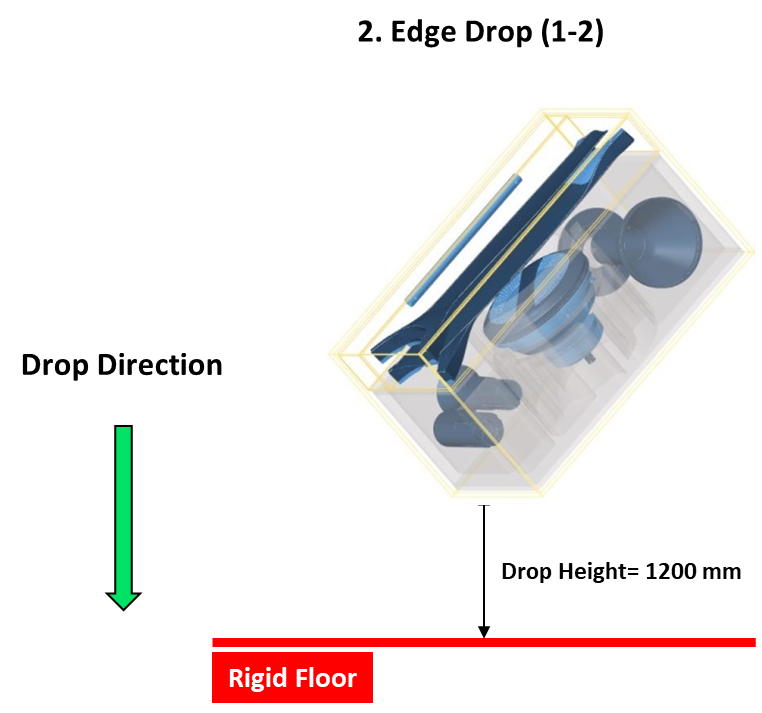

2.01 Edge12- Loading Condition

Corner Drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

2.02 Drop Test- Edge12

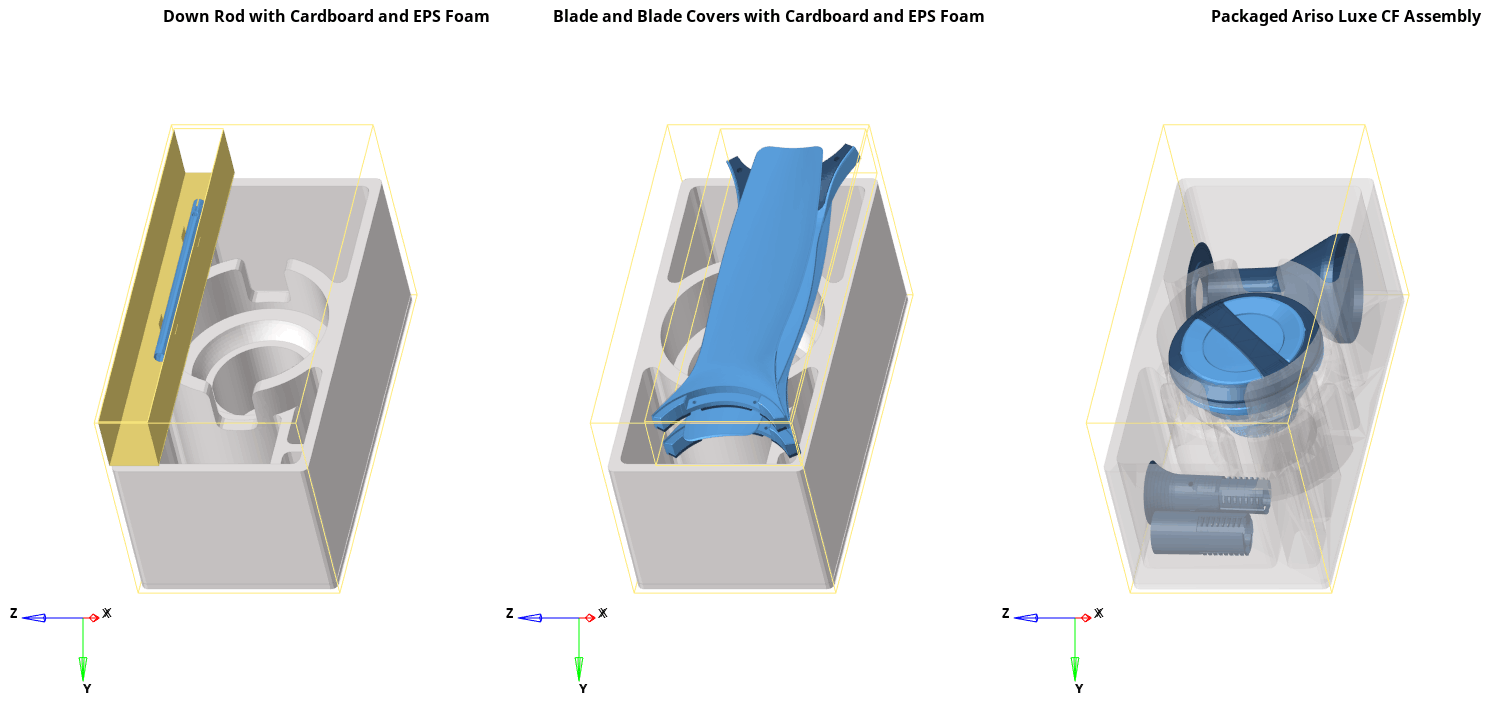

Edge12

2.03 Blade

Top Blade

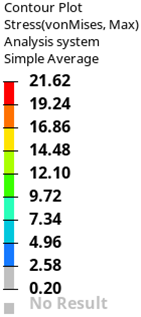

Top Blade Data
Top Blade
Top blade View
Middle Blade

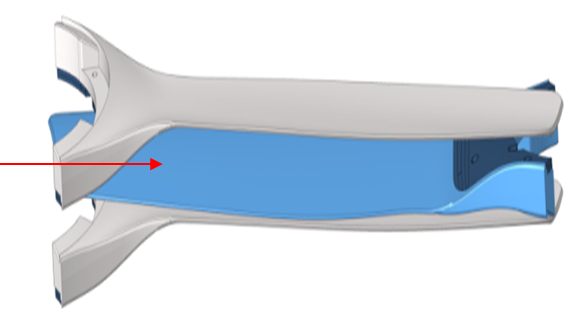

Middle blade data

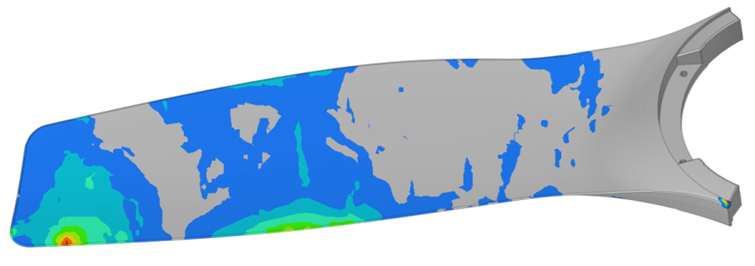

Middle blade
Middle blade
Bottom Blade

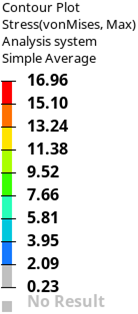

Bottom Blade
Bottom Blade
Bottom View

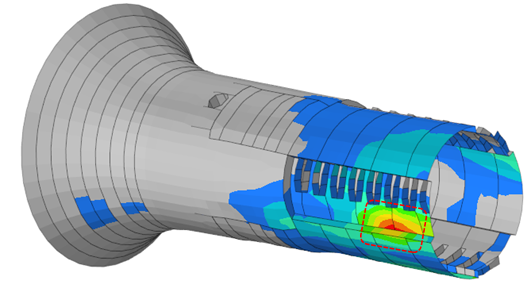

2.04 Canopy

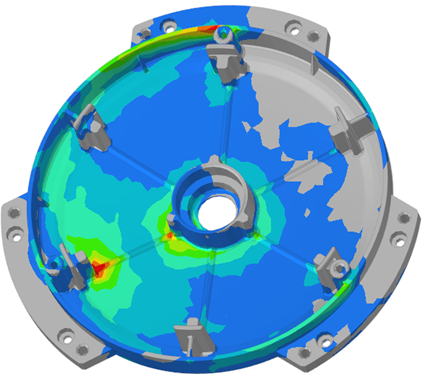

Top Canopy table
Top Canopy
Bottom Canopy Table

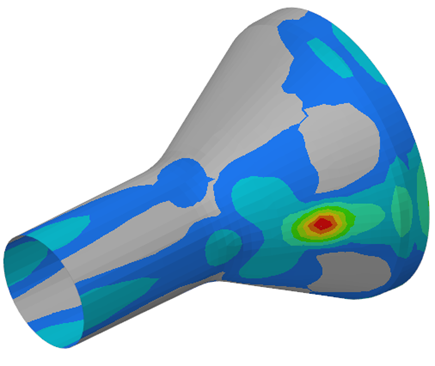

Bottom Canopy

2.05 Cover

Top Canopy

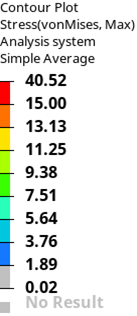

Top Canopy table
Bottom Canopy Table
Bottom Canopy

2.06 Cover housing and Cover deco

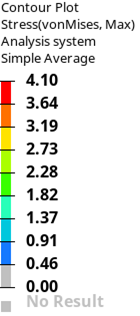

Top false cover table

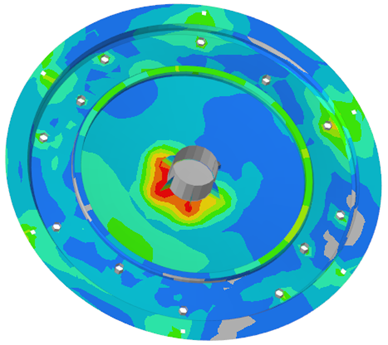

Top false cover

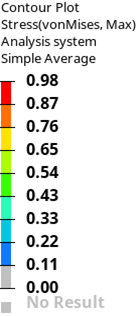

Edge12 deco Table

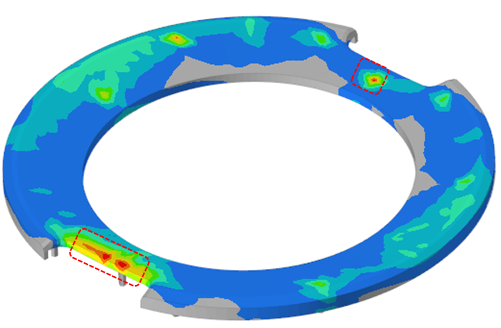

Edge12 deco Canopy

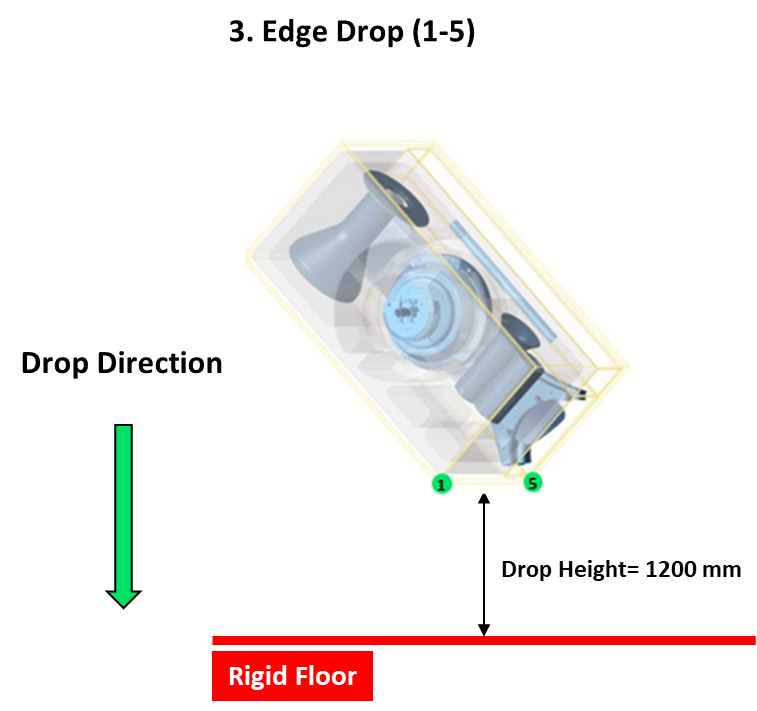

3.01 Edge15- Loading Condition

Edge15
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

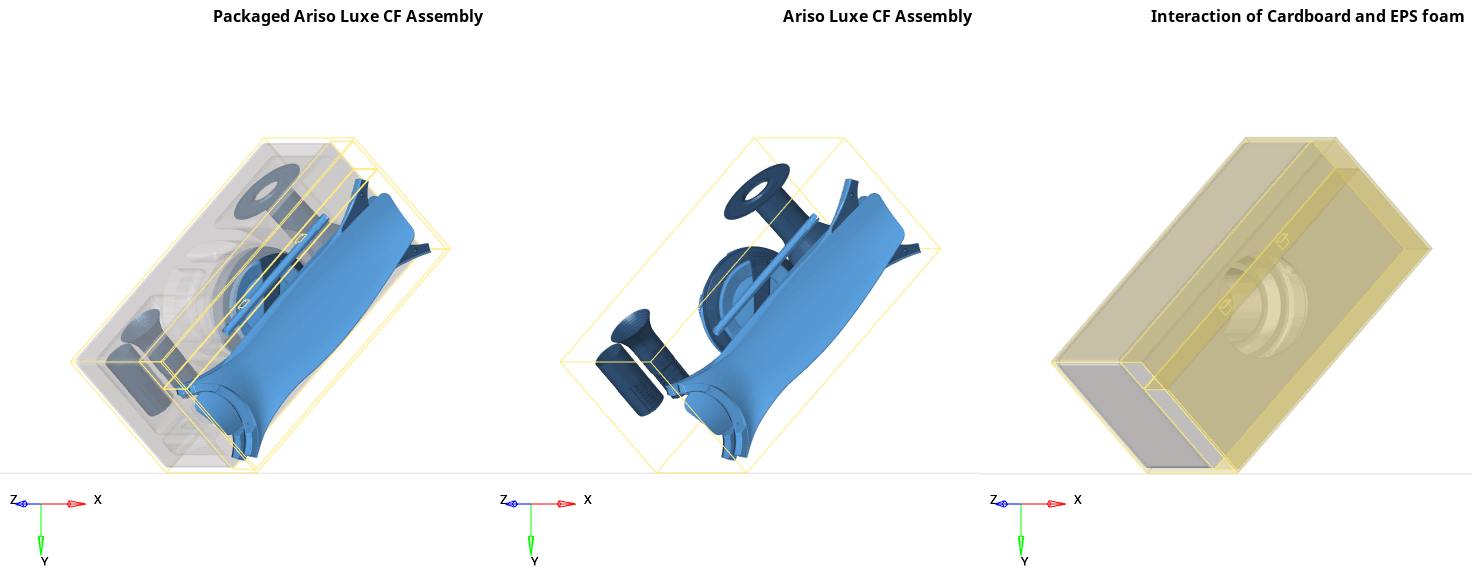

3.02 Drop Test- Edge15

Edge15

3.03 Blade

Top Blade
Edge15 Top Blade Data
Edge15 Top Blade

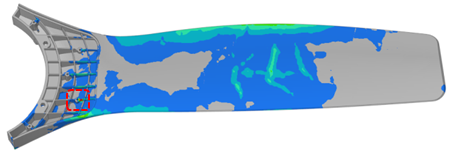

Edge15 Top blade View
Middle Blade

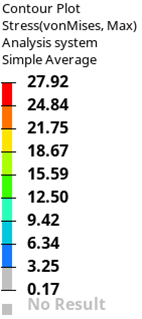

Edge15 Middle blade data

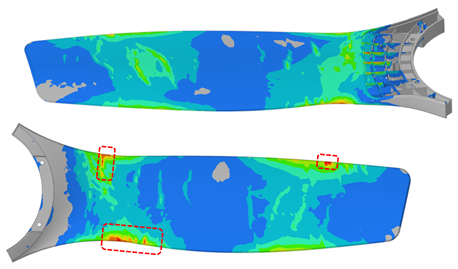

Edge15 Middle blade
Edge15 Middle blade
Bottom Blade

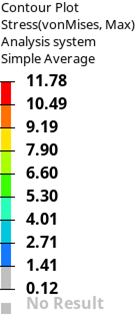

Edge15 Bottom Blade
Edge15 Bottom Blade

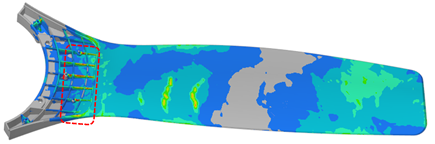

Edge15 Bottom View

3.04 Canopy

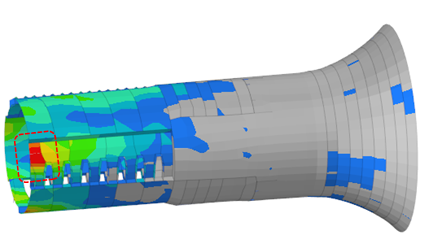

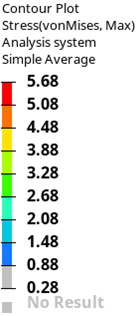

Edge15 Top Canopy table
Edge15 Top Canopy

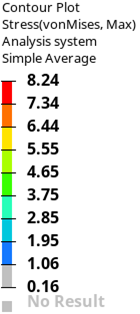

Edge15 Bottom Canopy Table

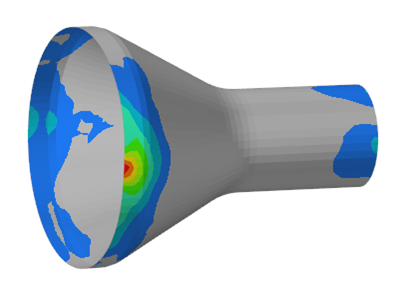

Edge15 Bottom Canopy

3.05 Cover

Top Canopy

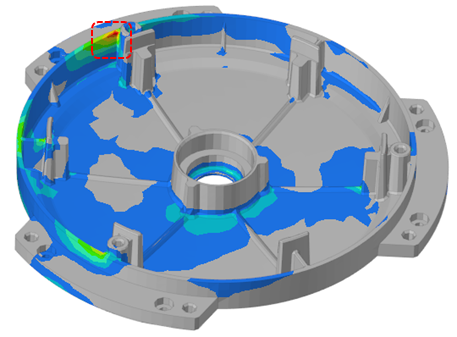

Top Canopy table
Bottom Canopy Table

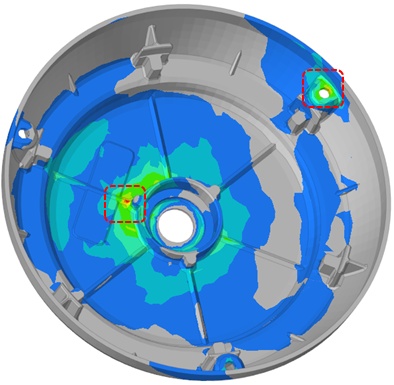

Bottom Canopy

3.06 Cover housing and Cover deco

Top false cover table

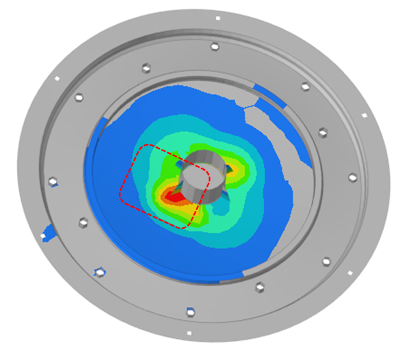

Top false cover

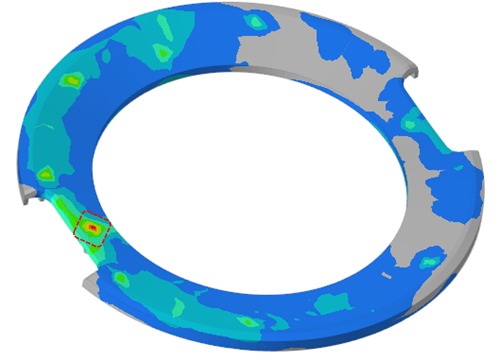

Edge12 deco Table
Edge12 deco Canopy

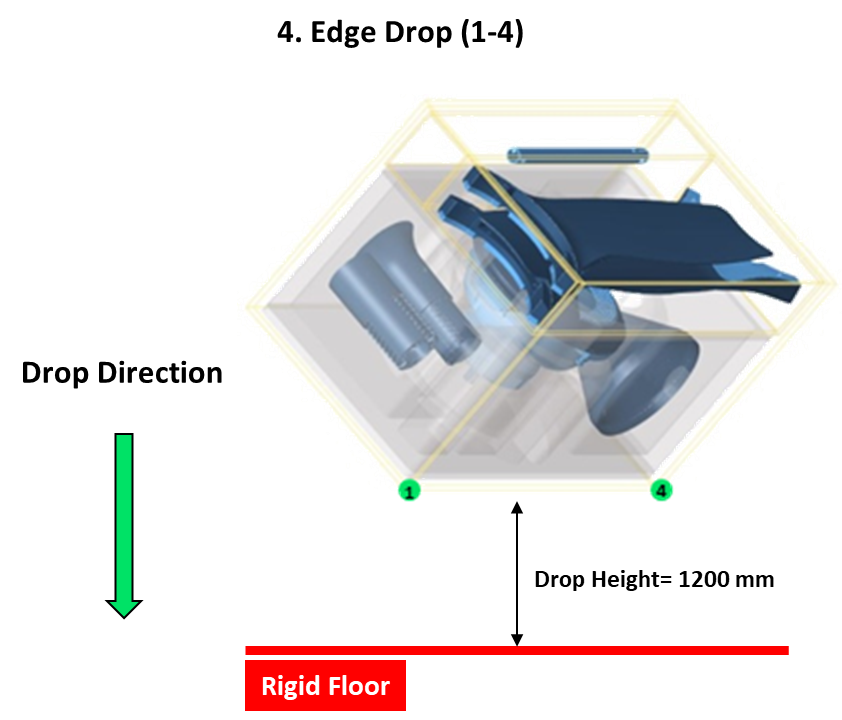

4.01 Edge14- Loading Condition

Corner Drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

4.02 Drop Test- Edge14

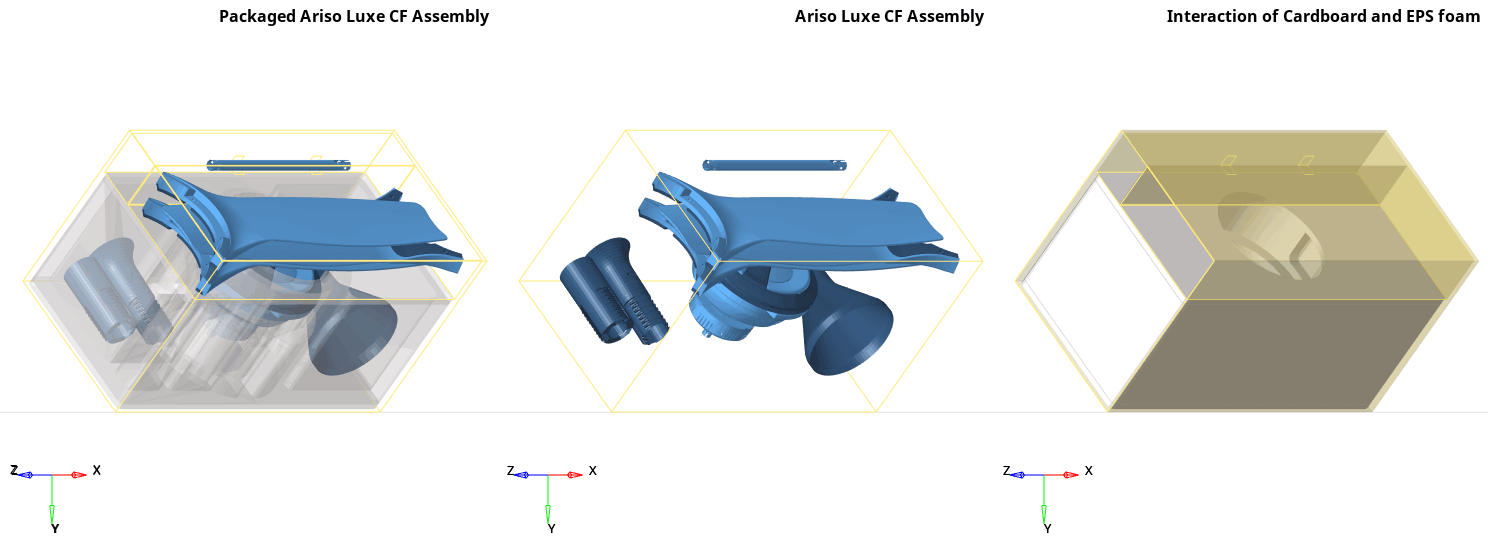

Edge14

4.03 Blade

Top Blade
Edge14 Top Blade Data
Edge14 Top Blade
Edge14 Top blade View
Middle Blade
Edge15 Middle blade data
Edge15 Middle blade
Edge15 Middle blade
Bottom Blade
Edge15 Bottom Blade
Edge15 Bottom Blade
Edge15 Bottom View

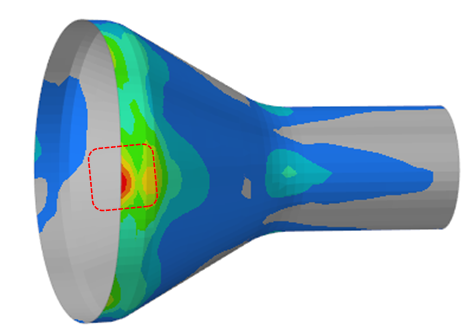

4.04 Canopy

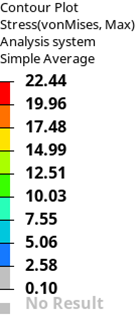

Edge14 Top Canopy table

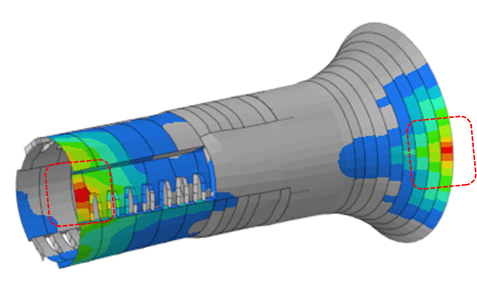

Edge14 Top Canopy

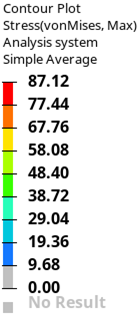

Edge15 Bottom Canopy Table
Edge15 Bottom Canopy

4.05 Cover

Top Canopy

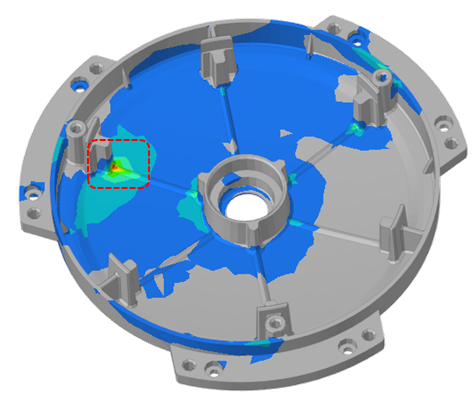

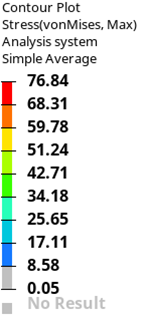

Top Canopy table
Bottom Canopy Table

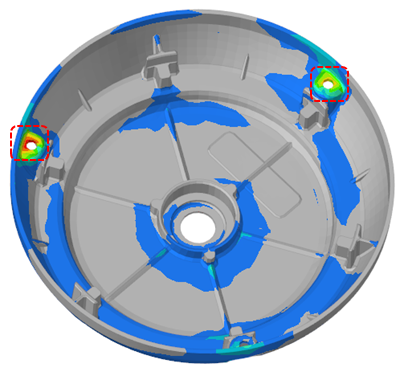

Bottom Canopy

4.06 Cover housing and Cover deco

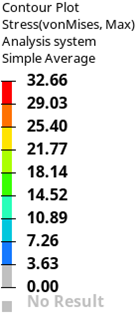

Top false cover table
Top false cover

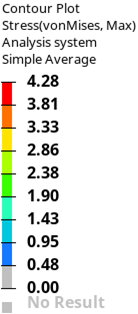

Edge12 deco Table
Edge12 deco Canopy

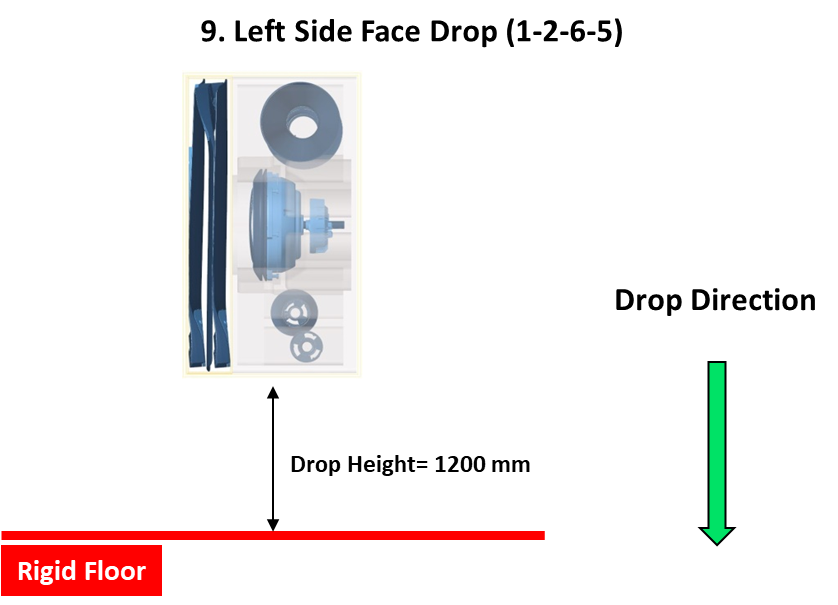

5.01 Left side face drop- Loading Condition

Corner Drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

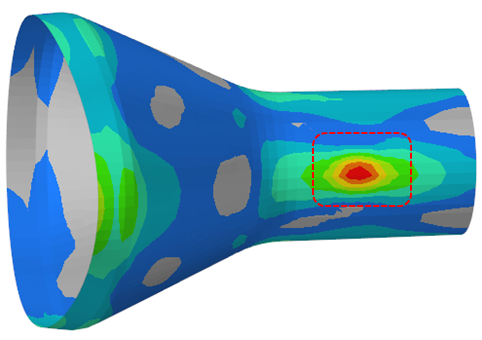

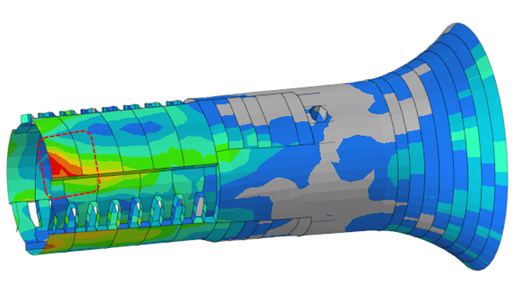

5.02 Left side face drop

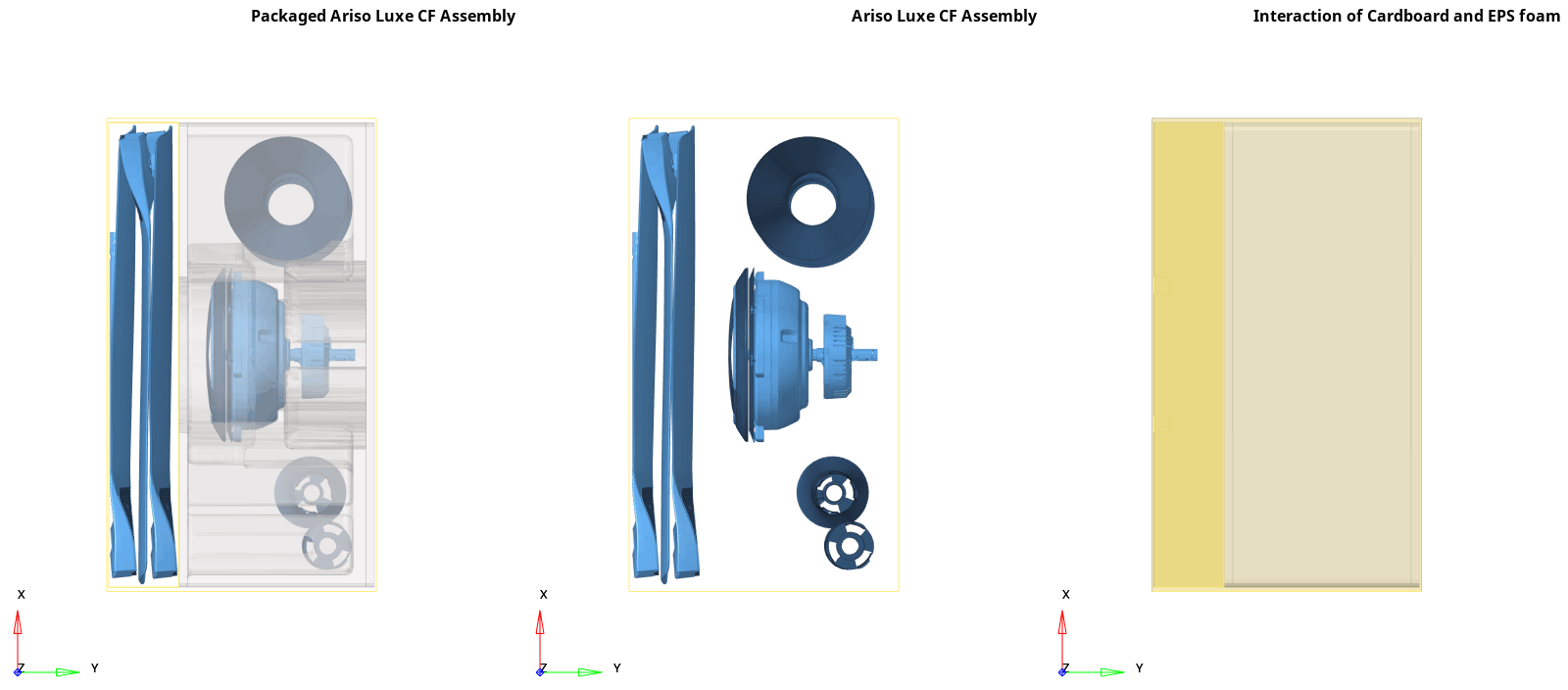

Left_side_face_drop

5.03 Blade

Top Blade

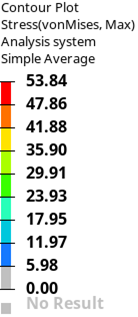

Edge14 Top Blade Data
Edge14 Top Blade
Edge14 Top blade View
Middle Blade
Edge15 Middle blade data
Edge15 Middle blade
Edge15 Middle blade
Bottom Blade
Edge15 Bottom Blade
Edge15 Bottom Blade
Edge15 Bottom View

5.04 Canopy

Edge14 Top Canopy table
Edge14 Top Canopy
Edge15 Bottom Canopy Table
Edge15 Bottom Canopy

5.05 Cover

Top Canopy
Top Canopy table

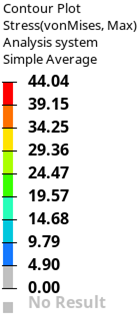

Bottom Canopy Table

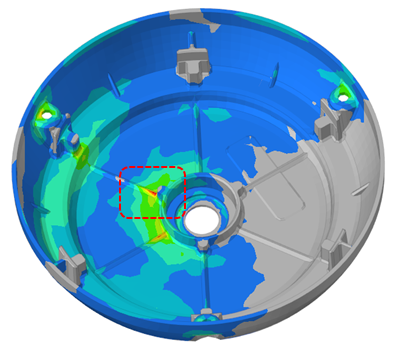

Bottom Canopy

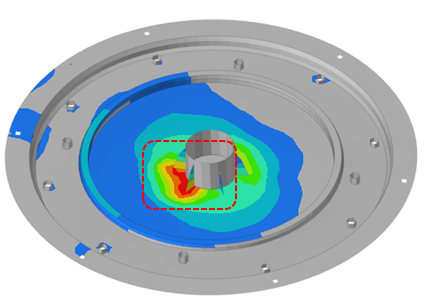

5.06 Cover housing and Cover deco

Top false cover table
Top false cover

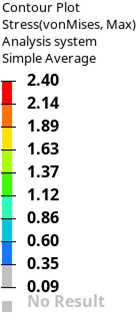

Edge12 deco Table

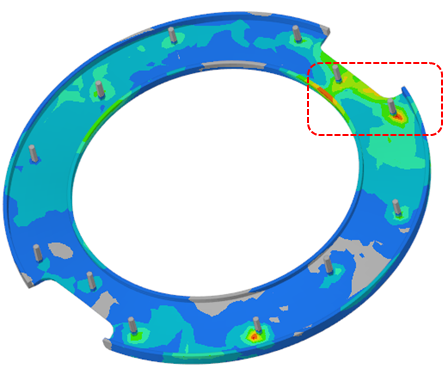

Edge12 deco Canopy

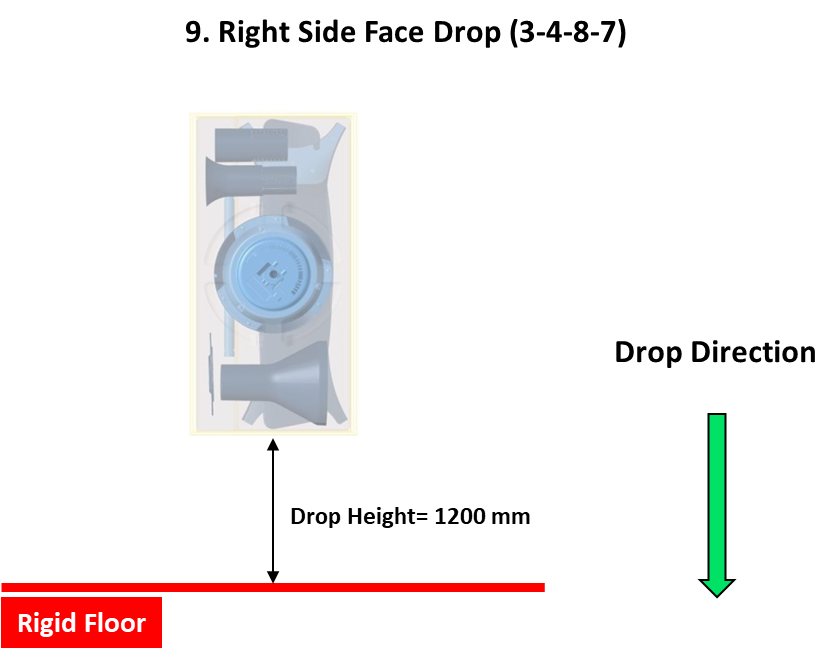

6.01 Right Side Face Drop- Loading Condition

Corner Drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

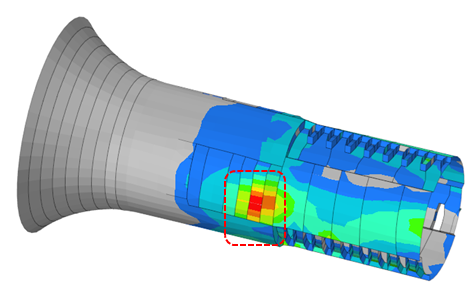

6.02 Right Side Face Drop

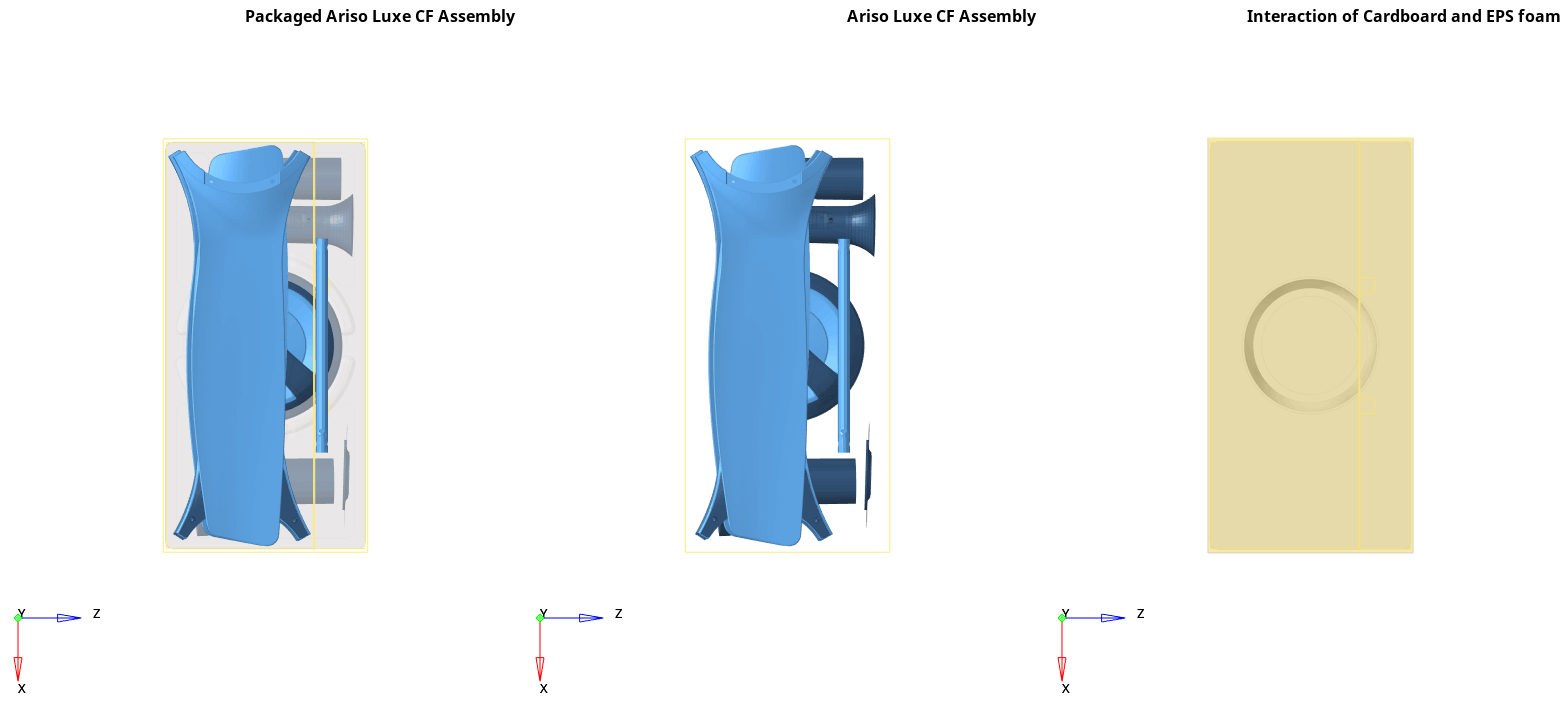

Right Side Face Drop

6.03 Blade

Top Blade

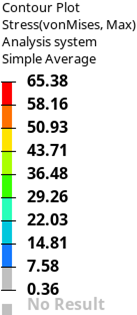

Edge14 Top Blade Data
Edge14 Top Blade
Right Side Face Drop top blade view
Middle Blade

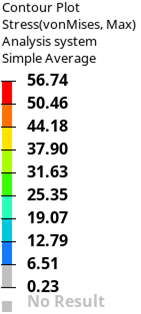

Right Side Face Drop middle blade data
Edge15 Middle blade
Right Side Face Drop middle blade view
Bottom Blade
Right Side Face Drop bottom blade data
Bottom Blade
Right Side Face Drop bootom blade

6.04 Canopy

Right Side Face Drop canopy top data
Right Side Face Drop canopy top

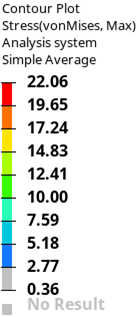

Right Side Face Drop canopy bottom data

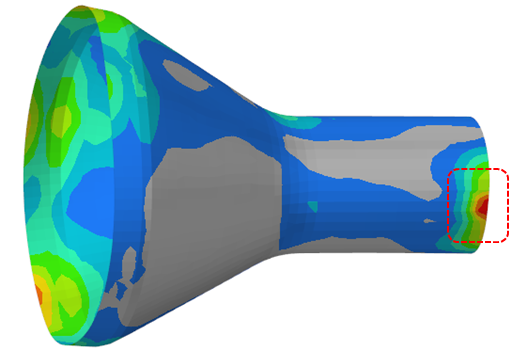

Right Side Face Drop canopy bottom

6.05 Cover

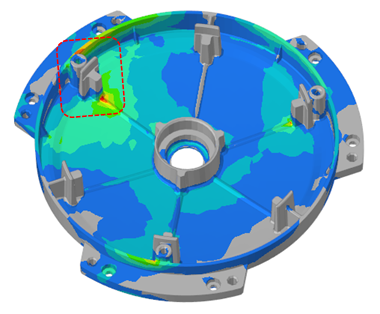

Right Side Face Drop cover top data
Right Side Face Drop cover top
Right Side Face Drop cover bottom data

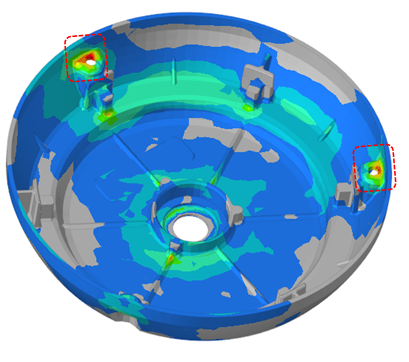

Right Side Face Drop cover bottom

6.06 Cover housing and Cover deco

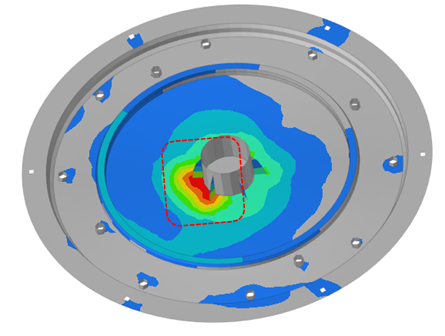

Right Side Face Drop cover housing data
Right Side Face Drop cover housing

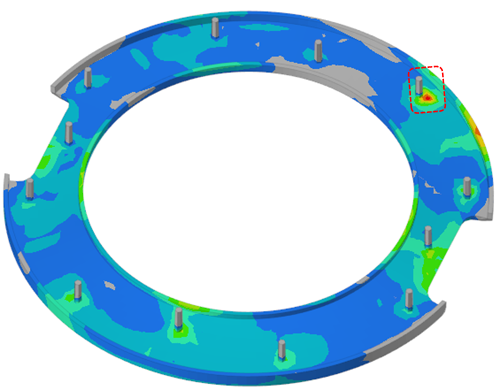

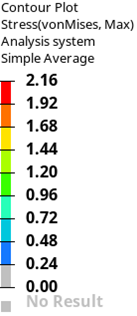

Right Side Face Drop cover deco data
Right Side Face Drop cover deco

7.01 Bottom-face drop (1-2-3-4) - Loading Condition

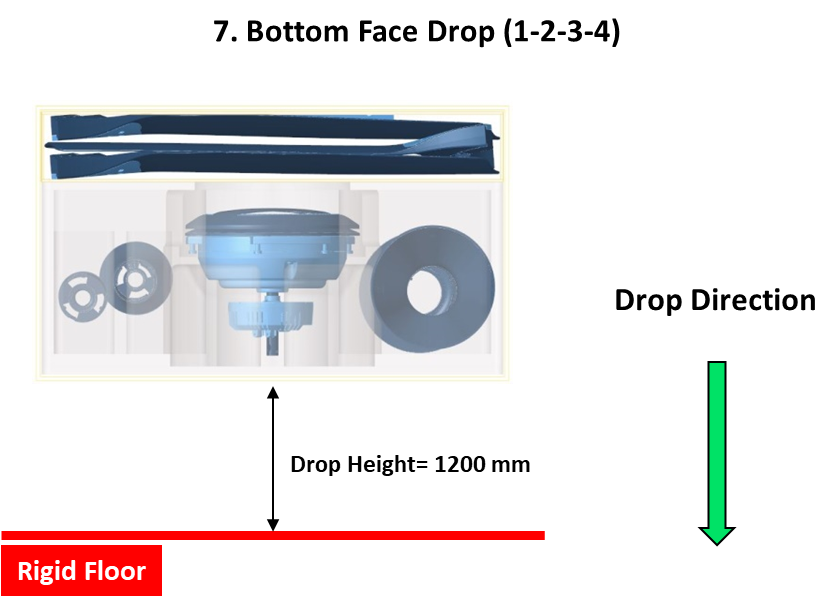

Bottom-face drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

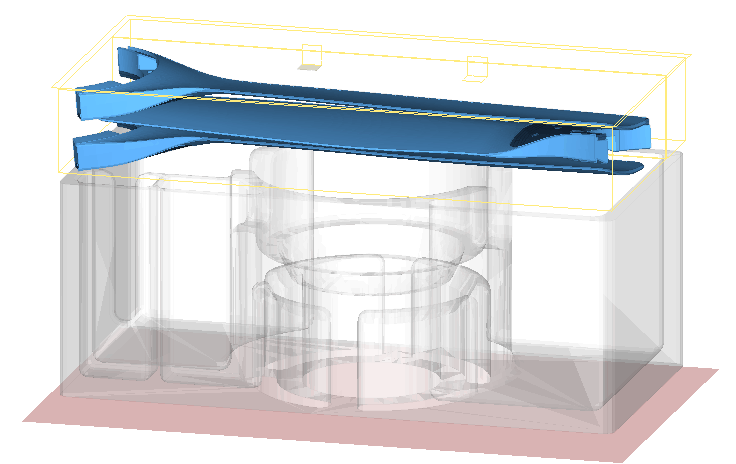

7.02 Bottom face drop 001

Bottom face drop 001

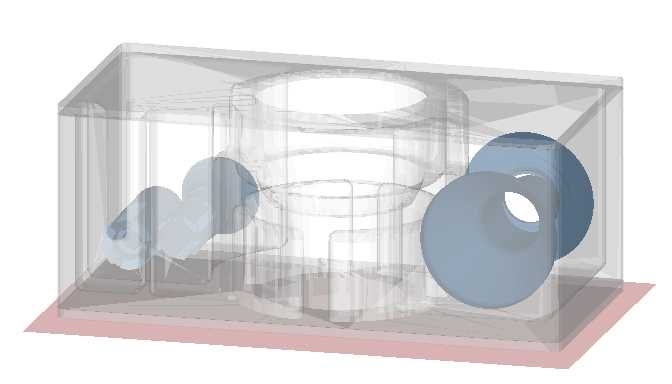

7.02 Bottom face drop 002

Bottom face drop 002

7.03 Blade

Top Blade

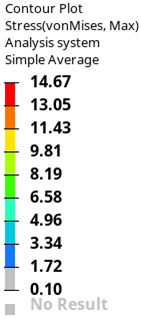

Bottom-face drop top blade data
Edge14 Top Blade

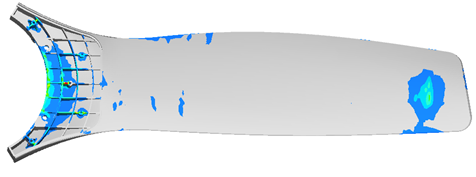

Bottom-face drop top blade view
Middle Blade
Bottom-face drop middle blade data
Edge15 Middle blade

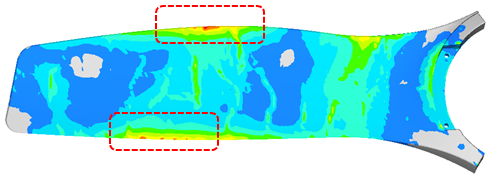

Bottom-face drop middle blade view
Bottom Blade
Bottom-face drop bottom blade data
Edge15 Bottom Blade

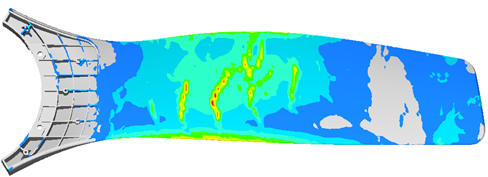

Bottom-face drop bottom blade view

7.04 Canopy

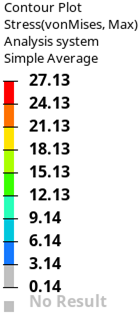

Right Side Face Drop canopy top data
Right Side Face Drop canopy top
Right Side Face Drop canopy bottom data

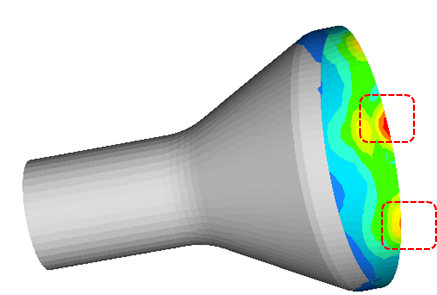

Right Side Face Drop canopy bottom

7.05 Cover

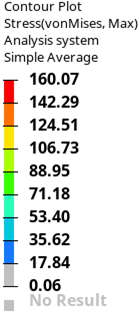

Right Side Face Drop cover top data

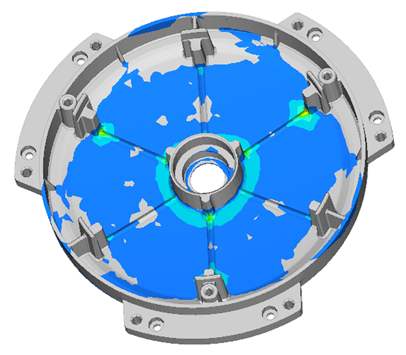

Right Side Face Drop cover top
Bottom-face drop bottom cover data

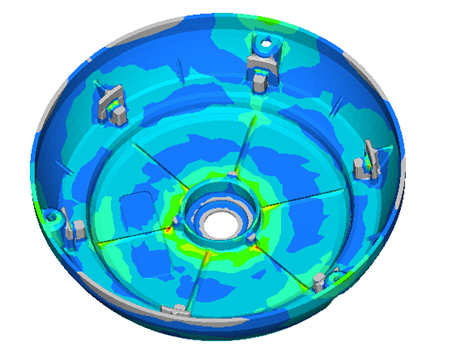

Bottom-face drop bottom cover

7.06 Cover housing and Cover deco

Bottom-face drop housing cover data

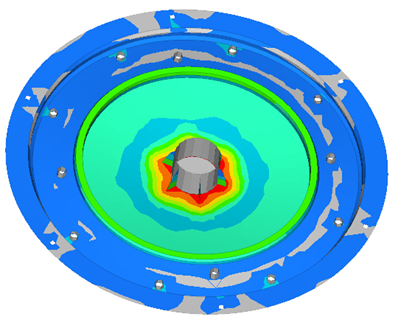

Bottom-face drop housing cover

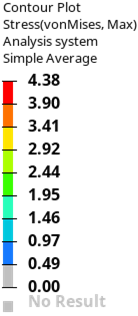

Bottom-face drop deco cover data

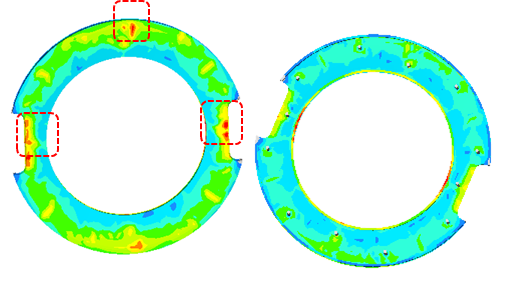

Bottom-face drop deco cover

8.01 Top face drop - Loading Condition

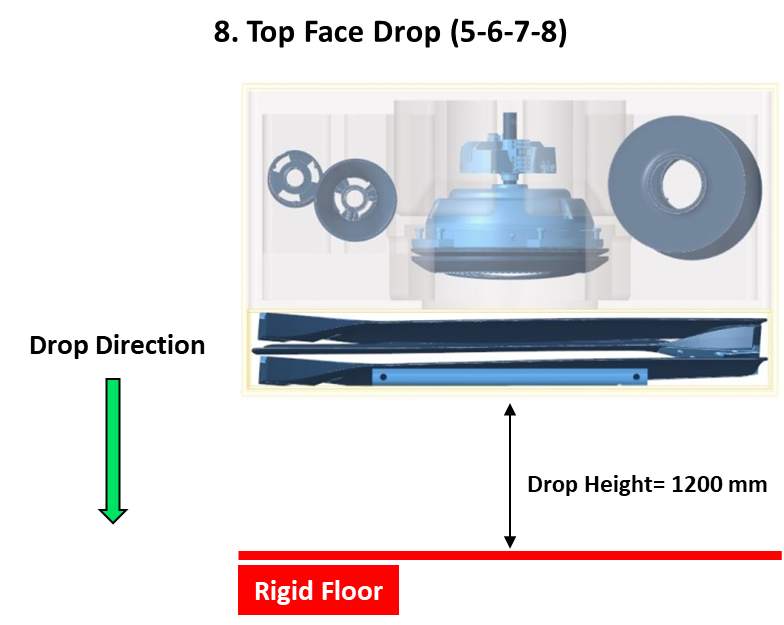

Top face drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

8.01 Top face drop

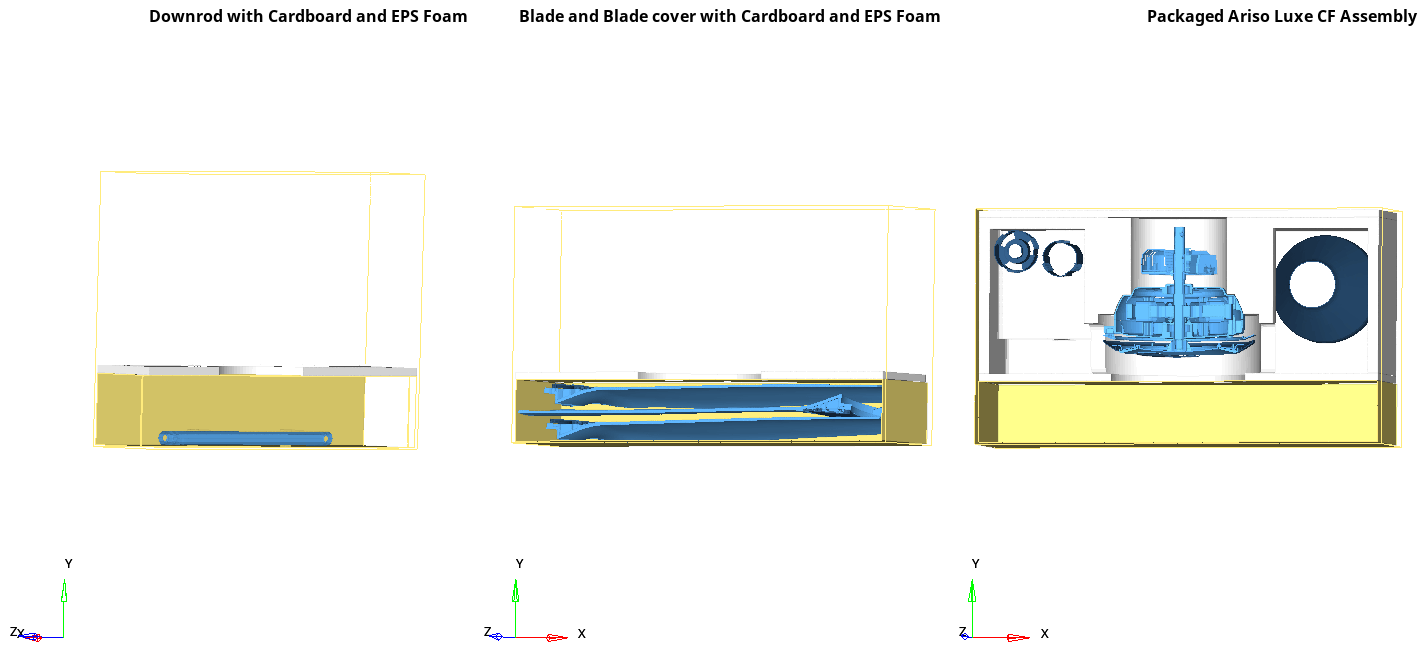

Top face drop

8.03 Blade

Top Blade

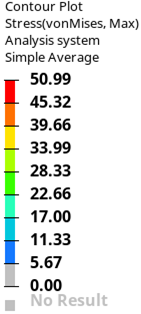

Top face drop top blade data
Edge14 Top Blade

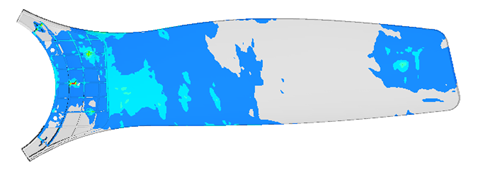

Top face drop top blade view
Middle Blade
Top face drop middle blade data
Edge15 Middle blade

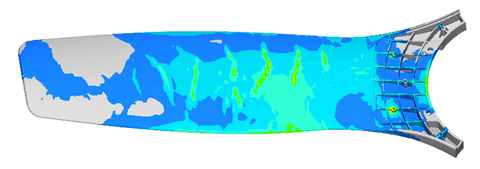

Top face drop middle blade view
Bottom Blade

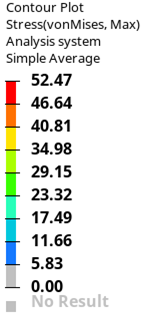

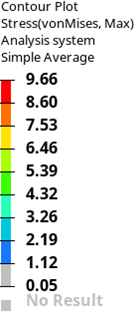

Top face drop bottom blade data
Edge15 Bottom Blade

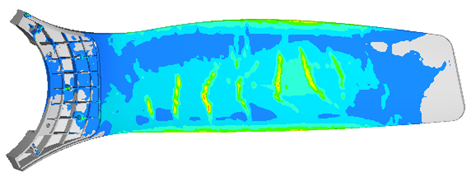

Top face drop bottom blade view

8.04 Canopy

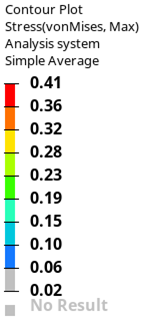

Top face drop top canopy data
Right Side Face Drop canopy top
Top face drop bottom canopy data
Top face drop bottom canopy

8.05 Cover

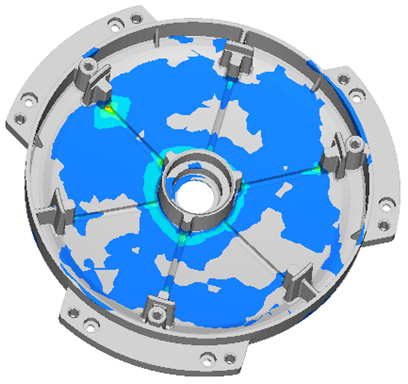

Top face drop top cover data
Top face drop top cover

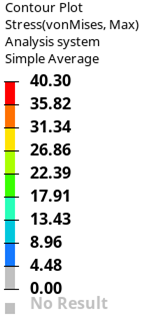

Bottom-face drop bottom cover data

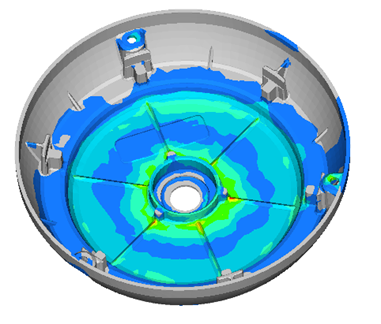

Bottom-face drop bottom cover

8.06 Cover housing and Cover deco

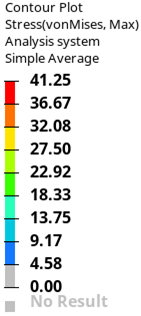

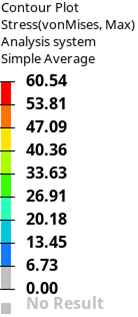

Bottom-face drop housing cover data

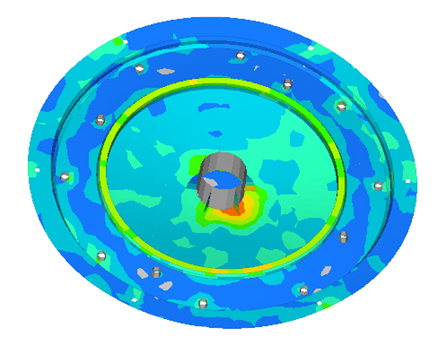

Bottom-face drop housing cover

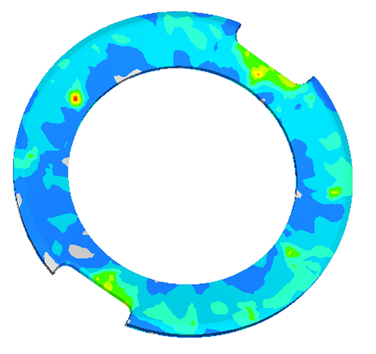

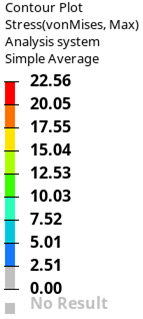

Bottom-face drop deco cover data
Bottom-face drop deco cover

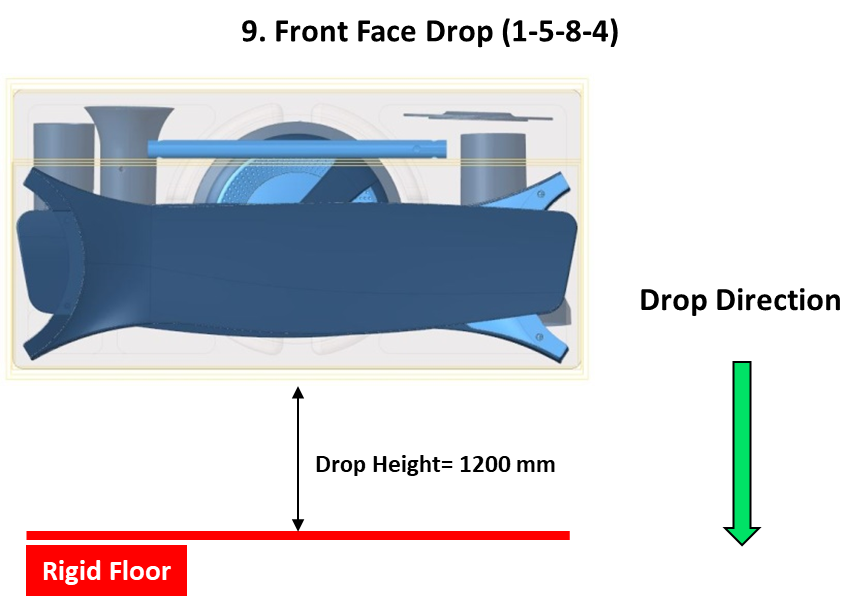

9.01 Front face drop - Loading Condition

Top face drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

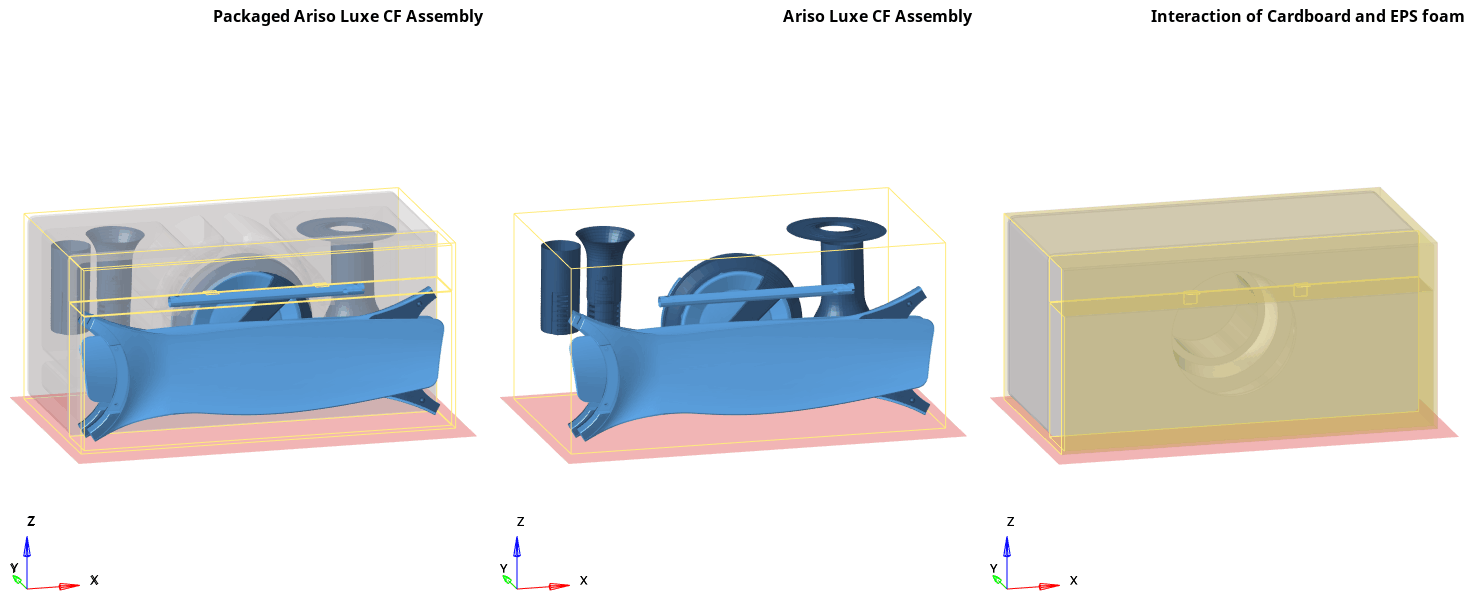

9.02 Front face drop

Font face drop

9.03 Blade

Top Blade
Top face drop top blade data
Edge14 Top Blade
Top face drop top blade view
Middle Blade
Top face drop middle blade data
Edge15 Middle blade
Top face drop middle blade view
Bottom Blade
Top face drop bottom blade data
Edge15 Bottom Blade
Top face drop bottom blade view

9.04 Canopy

Front face drop top canopy data

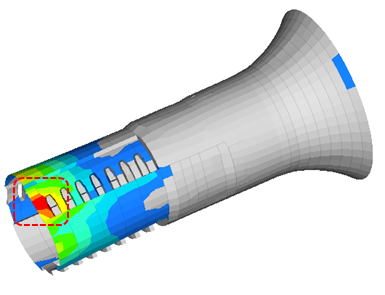

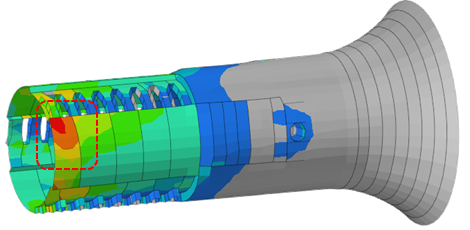

Front face drop top canopy

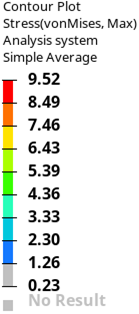

Top face drop bottom canopy data

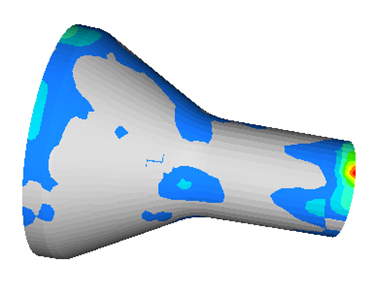

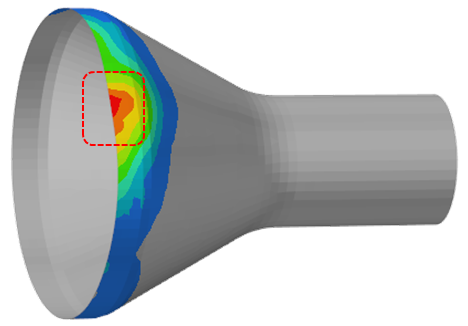

Top face drop bottom canopy

9.05 Cover

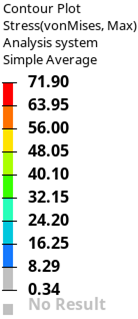

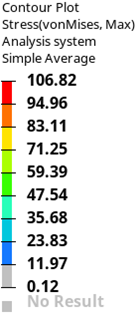

Top face drop top cover data

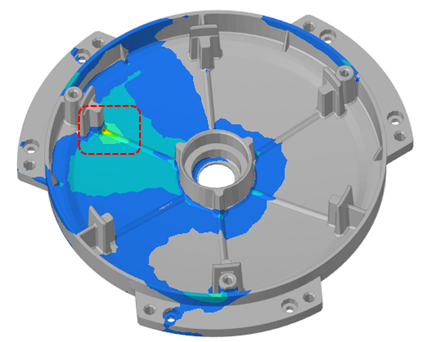

Top face drop top cover

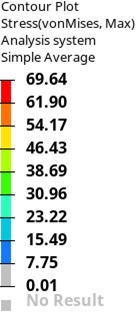

Bottom-face drop bottom cover data

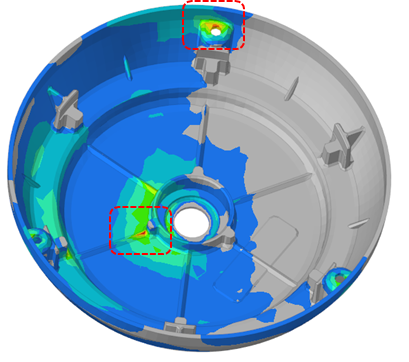

Bottom-face drop bottom cover

9.06 Cover housing and Cover deco

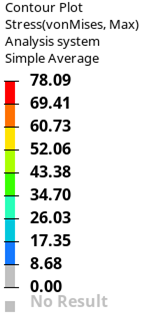

Bottom-face drop housing cover data

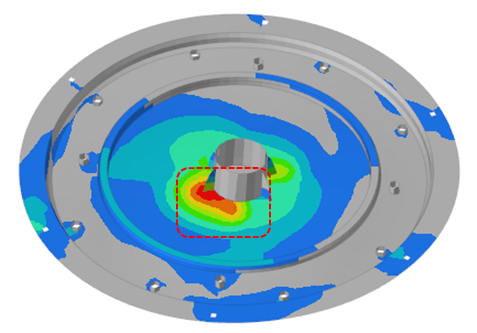

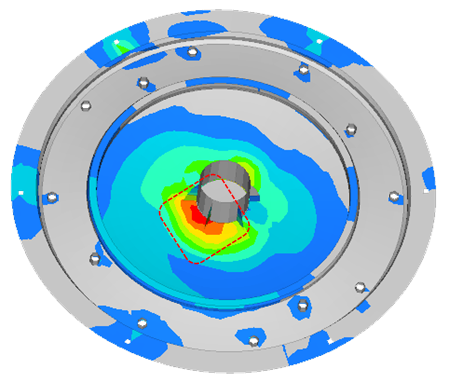

Bottom-face drop housing cover

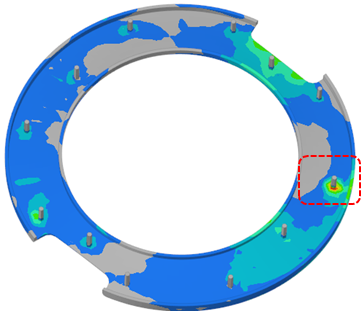

Bottom-face drop deco cover data
Bottom-face drop deco cover

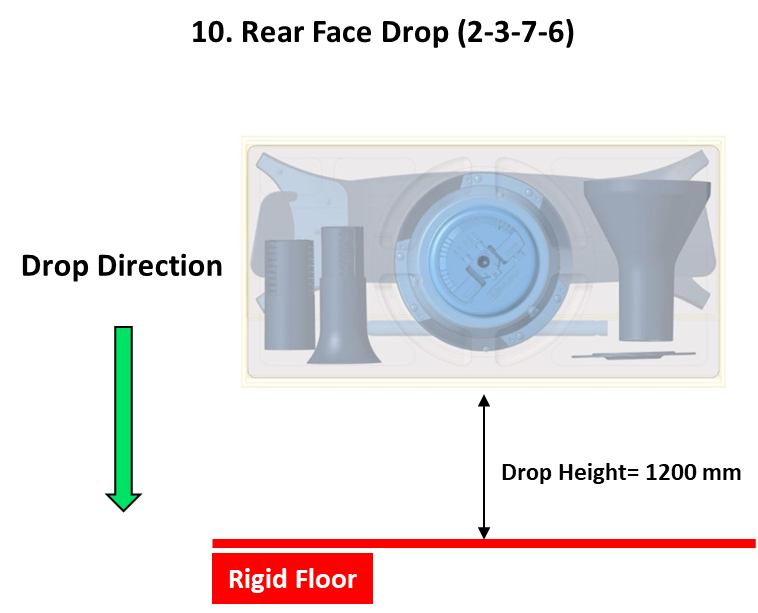

10.01 Rear Face Drop - Loading Condition

Top face drop
  • The complete packaged ariso luxe ceiling fan assembly inside the cardboard and the EPS foam are dropped from a height of 1200 mm in the direction shown above.

10.02 Rear Face Drop

Rear Face Drop

10.03 Blade

Top Blade

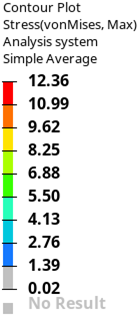

Top face drop top blade data
Edge14 Top Blade

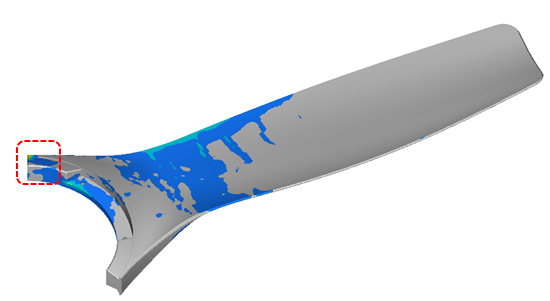

Top face drop top blade view
Middle Blade

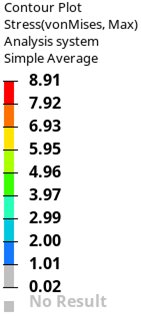

Top face drop middle blade data
Edge15 Middle blade

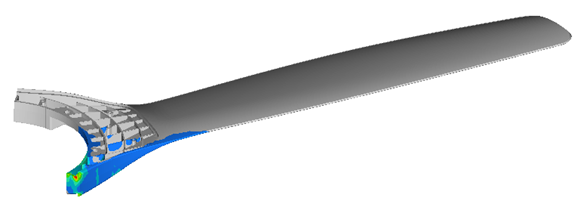

Top face drop middle blade view
Bottom Blade
Top face drop bottom blade data
Edge15 Bottom Blade

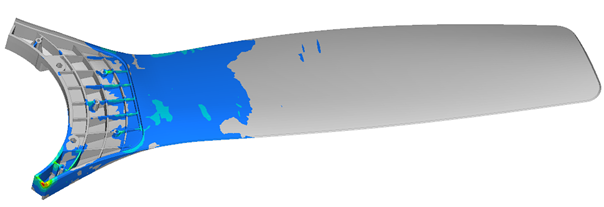

Top face drop bottom blade view

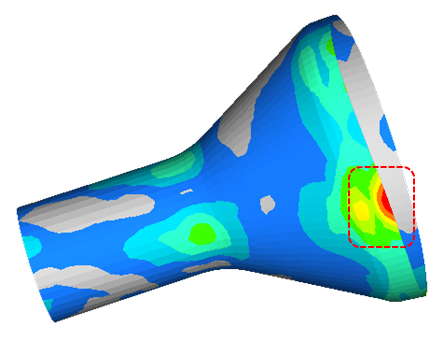

10.04 Canopy

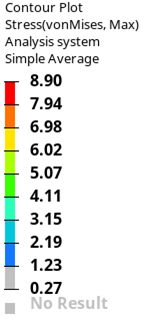

Front face drop top canopy data

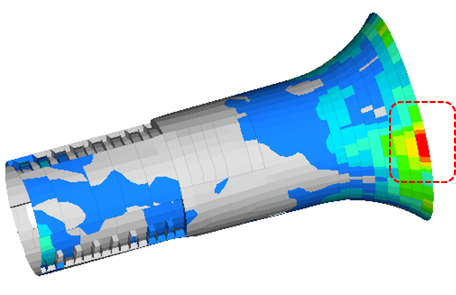

Front face drop top canopy

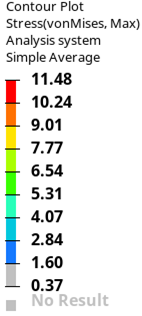

Top face drop bottom canopy data
Top face drop bottom canopy

10.05 Cover

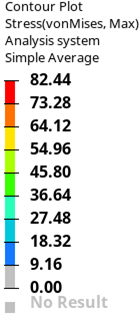

Top face drop top cover data

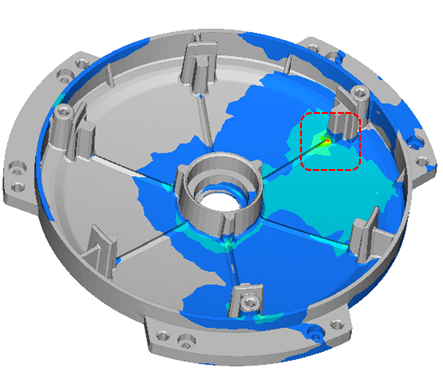

Top face drop top cover
Bottom-face drop bottom cover data

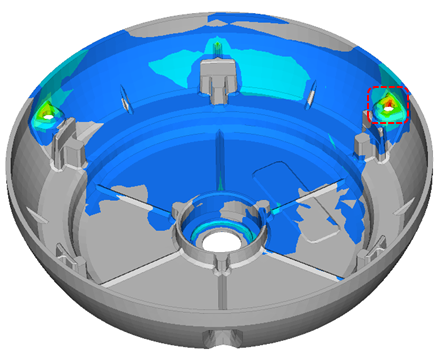

Bottom-face drop bottom cover
